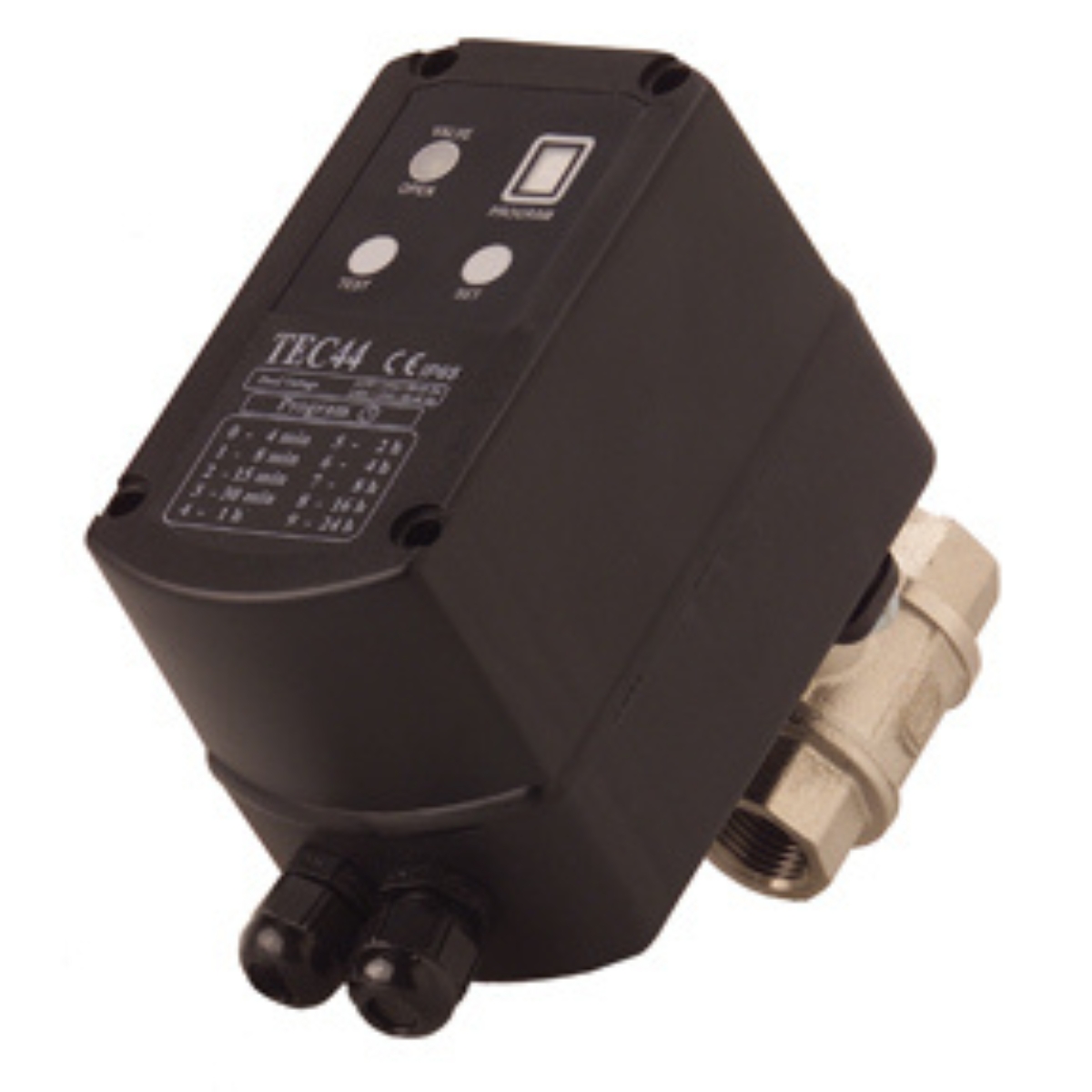

Motorized Ball Valve
Designed to be used as a condensate drain in compressed air systems or in any application where opening and closing a ball valve automatically is desired.
Key Features:
- Durable Construction: ABS fire-resistant housing with a watertight, compact design
- High-Pressure Performance: Rated up to 600 psi with a forged brass valve
- Smart Technology: Microprocessor-based 10 channel pre-programmable cycles
- "Non-Clogging"
- Interval Time: 1 second to 999 hours
- Discharge Time: 1 second to 999 hours
- User-Friendly Operation: Manual test switch with LED status indicators
- Versatile Installation: Can be mounded in any position
- Reliable Power Protection: Closes valve automatically during power failure
- Certified & Tested: UL approved, IP65/NEMA 4 rated, and life-tested for 200K + cycles
- Convenient Connectivity: FNPT inlet/outlet connections with 6ft power cord (compatible with 115V & 230V)
- Operating Temperature: 34°F-131°F
- Manufacturer's Warranty: 1-year coverage*
*Opening the housing breaks the IP65 seal and voids the warranty
