Product #: MCB07-25
Volume: 46.13
Weight: 0.422
Description
The Filter Regulator is One of the Most Popular Air Preparation Units. The Air Filter is Used to Separate Dust, Dirt, Moisture and Other Contaminants from the Compressed Air Line and Combined with a Relieving Regulator to Maintain a Steady Outlet Pressure Unaffected by Inlet Pressure Fluctuation
- Compact Design
- Screw-On Transparent Bowl Reduces Maintenance Time

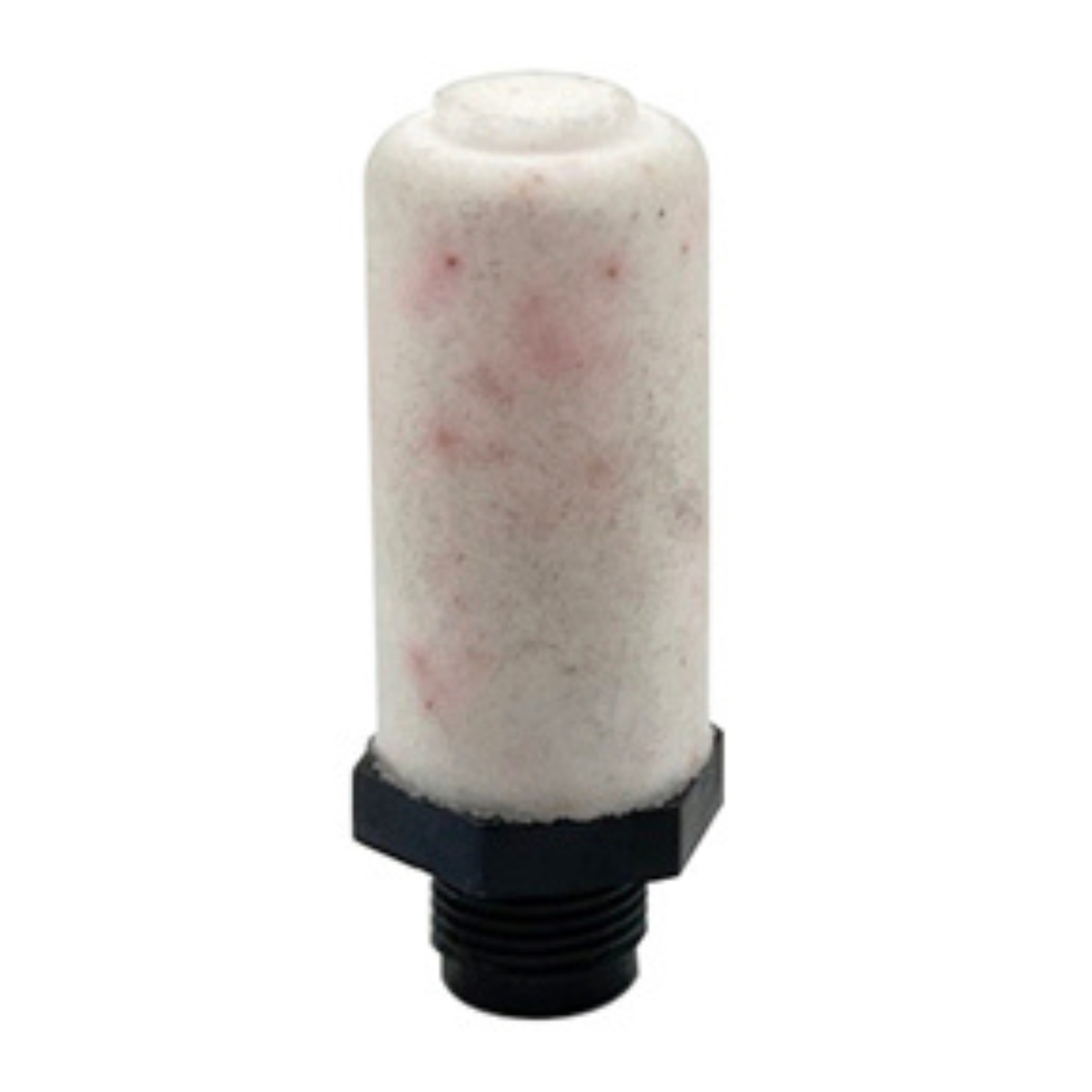

- 5 Micron Element Standard MC5726-04
- 1/8" Manual Drain Standard MC773-03
- Bowl Size 1 Fluid Oz.
- Relieving Regulators Allow Reduction of Outlet Pressure When System is Dead Ended
- Low Torque, Non-Rising Adjusting Knob
- Snap Action Knob Locks Pressure Setting When Depressed
- Full Flow Gauge Ports (2) 1/8" FNPT
- Maximum Pressure: 150 psig
- Spring Pressure Range 5-125 psi
- Operating Temperature: 0°F to 125°F
Recommended Accessories
- Back Mounted Pressure Gauge PSB208-XXX
- Plastic Panel Nut Only MC2962-89
- Neck Mounting Bracket with Nut MC18-025-003
