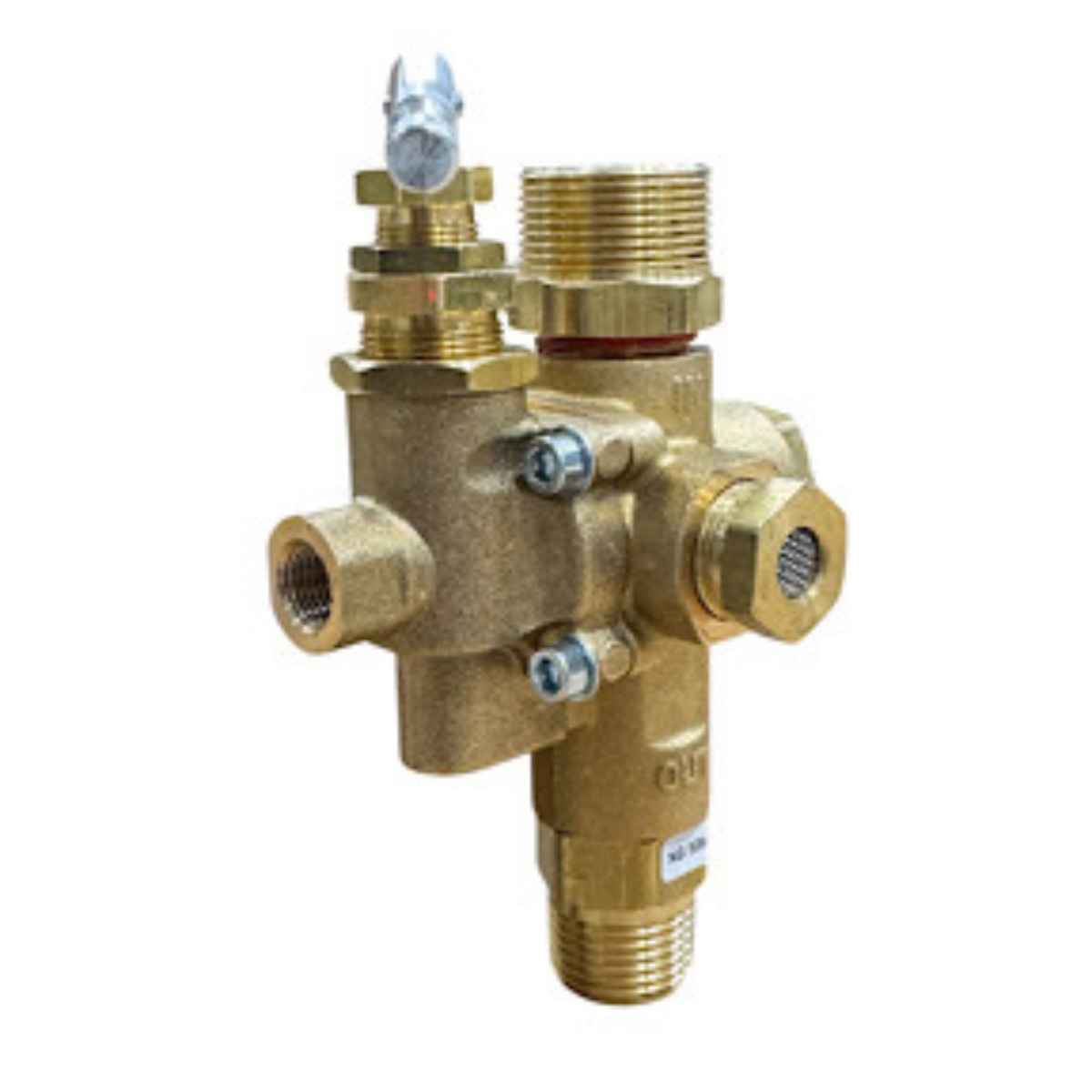

Unloader Valve Mark IV 3/4 Compression x 1/2 FPT 145-175

Product #: LGM40A-0704HS

Weight: 1.46

Description

    Application: For Use with Continuous Run Air Compressors

    The Mark IV Unloader Valve with Straight Through Flow Design Combines Pilot Valve, Vent Valve and Check Valve into One Compact Unit and Eliminates the Need for Built In Head Unloaders

  • Construction: Forged Brass Body, Zinc Plated Steel Internal Components, Fluorocarbon Piston Ring, Stainless Steel Springs and a Glass Filled Fluoropolymer Check Valve Poppet
  • Easy to Install: Place the Mark IV into the Receiver and Attach the Compressor Discharge Line to the Valve Inlet

  • Factory Preset Cut- In: Cut- Out: Pressure 145 - 175
  • Minimum Cut- In: 60 PSI
  • Maximum Cut- Out: 250 PSI
  • Can be Field Adjusted
  • Tapped & Plugged 1/8 NPT Port for Throttle Control of a Gas Engine
  • A Toggle Unloading Lever for One Hand Warm Up Control
  • Suitable for Compressors Up to 30 SCFM
  • Equipped with M20053 3/8 NPT Muffler
